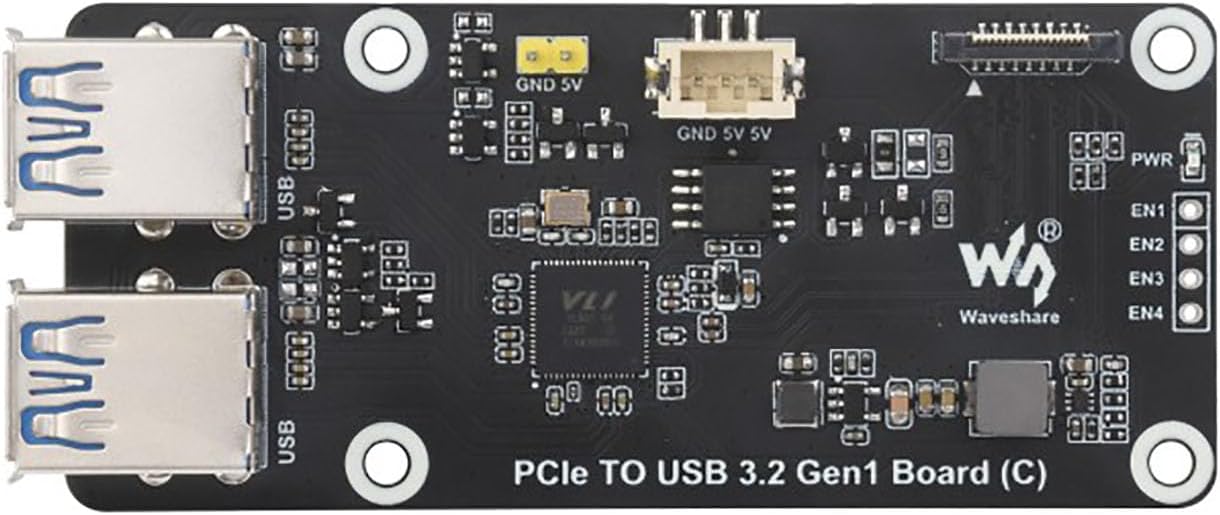

PCIe to 4-Ch USB3.2 Gen1 Board (C) Compatible with Raspberry Pi 5 PCIe to USB Adapater Up to 5Gbps Transmission Speed 2PIN or 33PIN Connector for Power Supply No Driver Required Plug and Play
4.3 (45 items)
Limited Time Sale$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217019549 | Release Date | 2026/04/19 | List Price | $9.60 | Model Number | 217019549 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

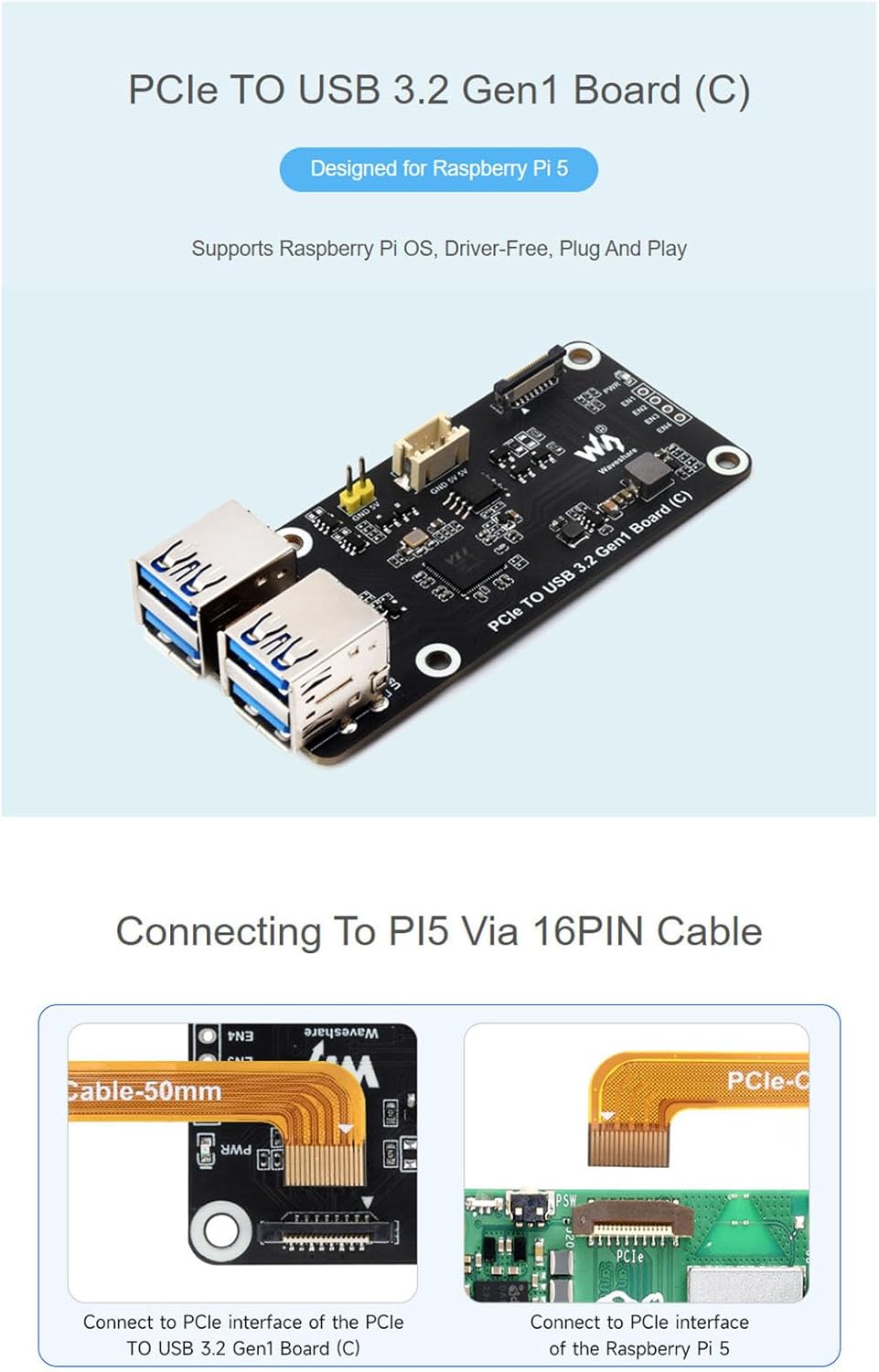

Description PCIe to 4-Ch USB3.2 Gen1 Board (C) Designed for Raspberry Pi 5, extending 4x USB 3.2 Gen1 Ports high-speed file transmission PCIe To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals, Supports Power Supply Via 2PIN Header Or 3PIN Connector Comes With Transparent Acrylic Mounting Plate, Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5 Connecting To PI5 Via 16PIN Cable Specifications INTERFACE STANDARD: High-speed USB 3.2 Gen1 COMMUNICATION RATE: 5Gbps for single USB port total 5Gbps for 4-ch USB ports USB OUTPUT 5V@Imax: 2A; USB-A connector POWER SUPPLY: 5V DC power supply header/connector OPERATING TEMPERATURE : 0℃ ~ 75℃ Packing List PCIe TO USB 3.2 Gen1 Board (C) x1 Transparent acrylic mounting plate x1 16PIN PCIe cable x1 PH2.0 3PIN cable x1 Standoff pack x1
- 【5Gbps fast transfer】PCIe To 4 Channel USB, Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission
- 【8-Ch USB Ports】PCIe To USB module, enabling Up To 8-Ch USB Ports For The Raspberry Pi 5. PCIe To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals
- 【4-Ch Power Supply Independent Control】PCIe To USB 3.2, allows Controlling The Power ON/OFF Of Each USB Port Via Commands; Supports Power Supply Via 2PIN Header Or 3PIN Connecto
- 【Acrylic mounting plate】PCIe To USB C 3.2 ,comes With Transparent Acrylic Mounting Plate, Stable And Not Easy To Loosen; Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5 Connecting To PI5 Via 16PIN Cable
- 【Note】PCIe To USB C adaper, the Pi 5 is NOT included, please refer to the Package Content for detailed part list
| Brand | iiunius |
|---|---|
| Manufacturer | iiunius |
| Compatible Devices | Keyboard, Mouse, Other USB Peripherals, Storage Device |
| Data Link Protocol | USB |
| Data Transfer Rate | 20 Gigabits Per Second |
| Hardware Interface | USB Type C |
| Warranty Description | 1 |
| Compatible Operating System Family | Linux |
| Minimum Required Operating System Version | Debian 11.0 Bullseye |
